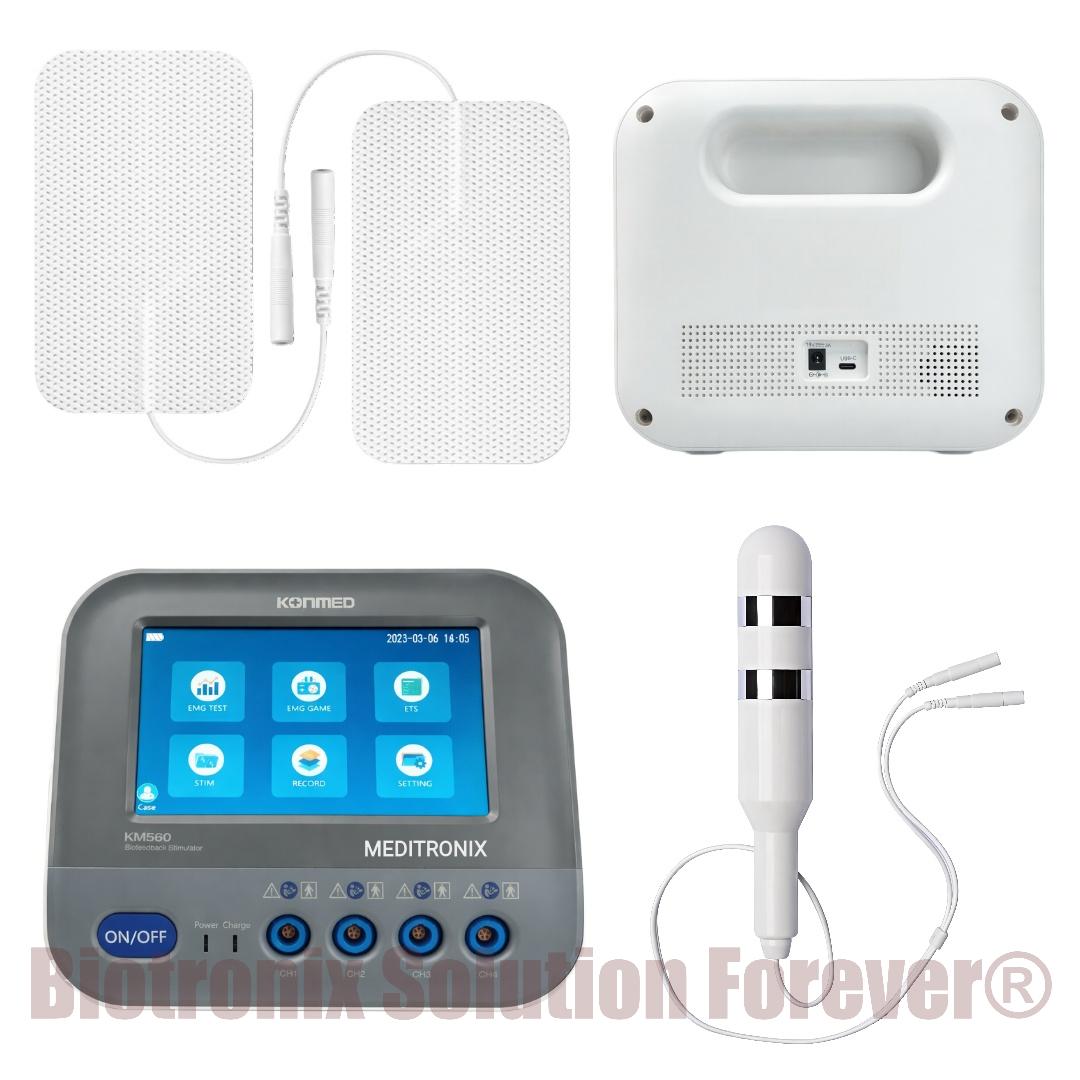

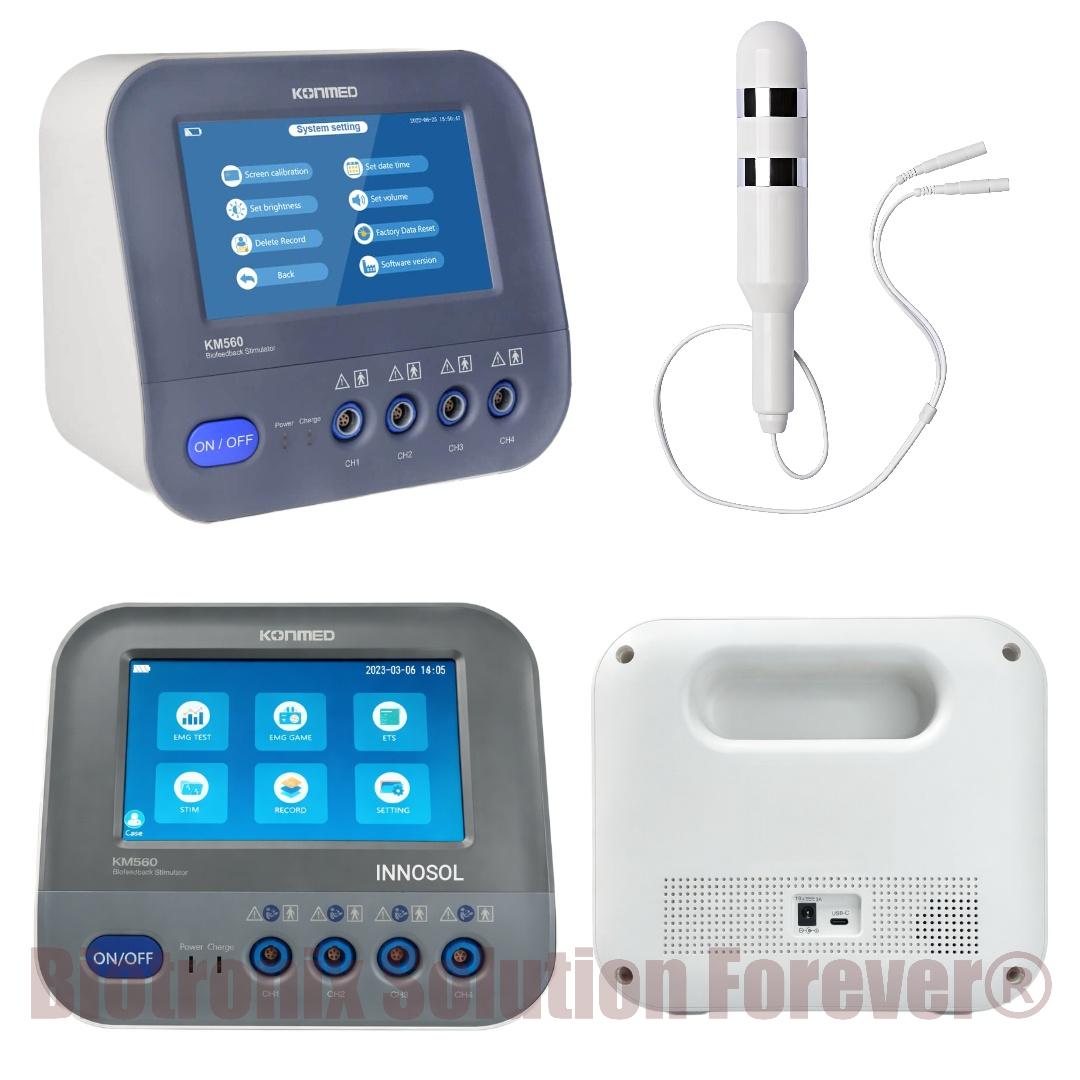

EMG Biofeedback Therapy Equipment with FES and NMES
Biotronix Solution Forever EMG Biofeedback Therapy Equipment with FES and NMES is a professional rehabilitation system designed for EMG biofeedback, muscle activity monitoring and neuromuscular electrical stimulation. Based on the supplied KM-560 documentation, the system combines myoelectric biofeedback with electrical stimulation and provides a touchscreen interface for selecting treatment programs, monitoring muscle activity and adjusting therapy parameters. The device is designed for use under the supervision of qualified healthcare professionals in hospitals, clinics and rehabilitation centers. Pasted markdown

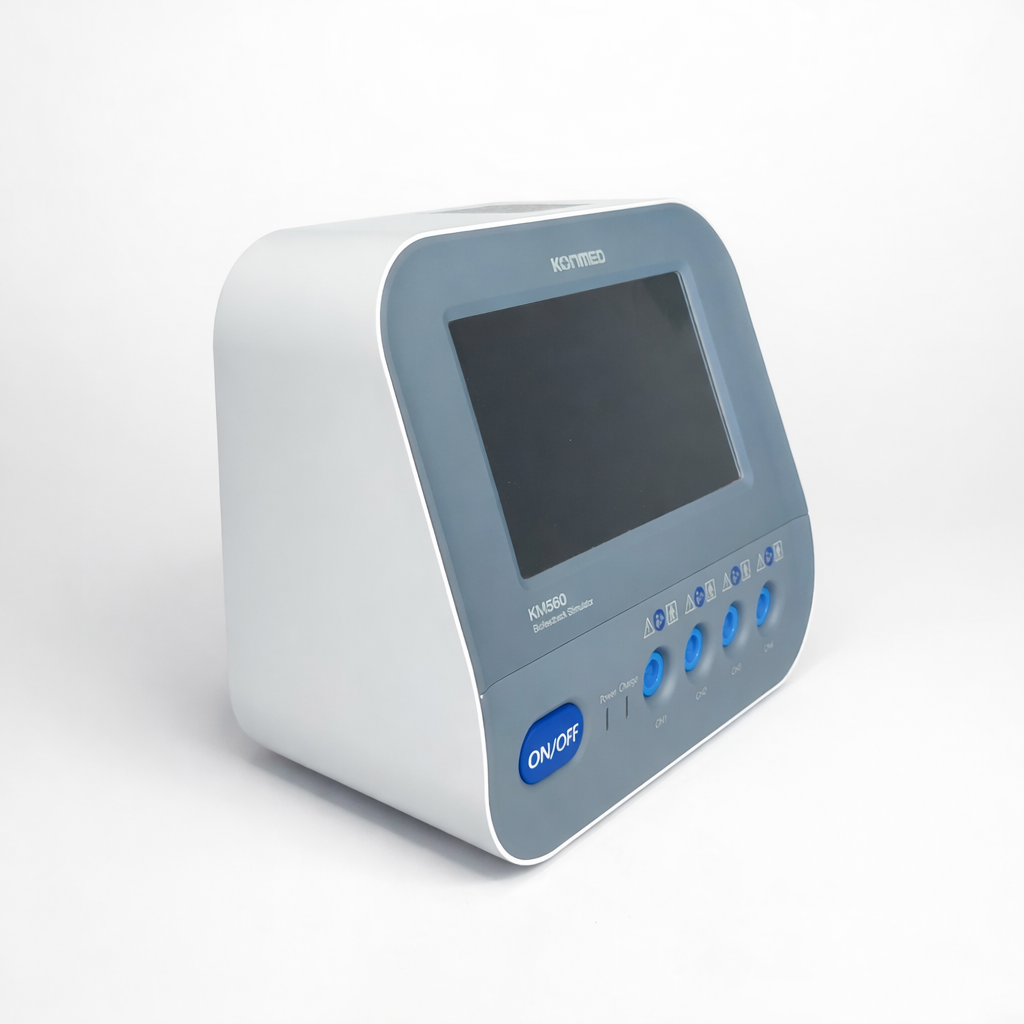

The system features a 7-inch true-color high-resolution TFT LCD display for viewing treatment waveforms and data. Its visual touchscreen interface is designed to make treatment setup straightforward, while multiple-channel technology allows different treatment areas to be managed simultaneously depending on the model configuration. Treatment records can also be stored and recalled for clinical workflow. Pasted markdown
Advanced EMG Biofeedback
The EMG biofeedback function provides real-time information about muscle activity during training. The supplied documentation describes myoelectric feedback, EMG waveform display and adjustable feedback thresholds. The ETS function can use the detected EMG activity as a trigger for electrical stimulation, allowing biofeedback and stimulation to be combined within an appropriate rehabilitation program. Pasted markdown
FES & NMES Therapy
The system provides electrical stimulation functions with adjustable frequency, pulse width, treatment duration, waveform and operating mode. According to the supplied KM-560 specification, electrical stimulation frequency can be adjusted from 1–120 Hz, pulse width from 50–450 μs, and treatment time from 1–60 minutes. The system also provides continuous and non-continuous operating modes.
Touchscreen & Multi-Channel Operation

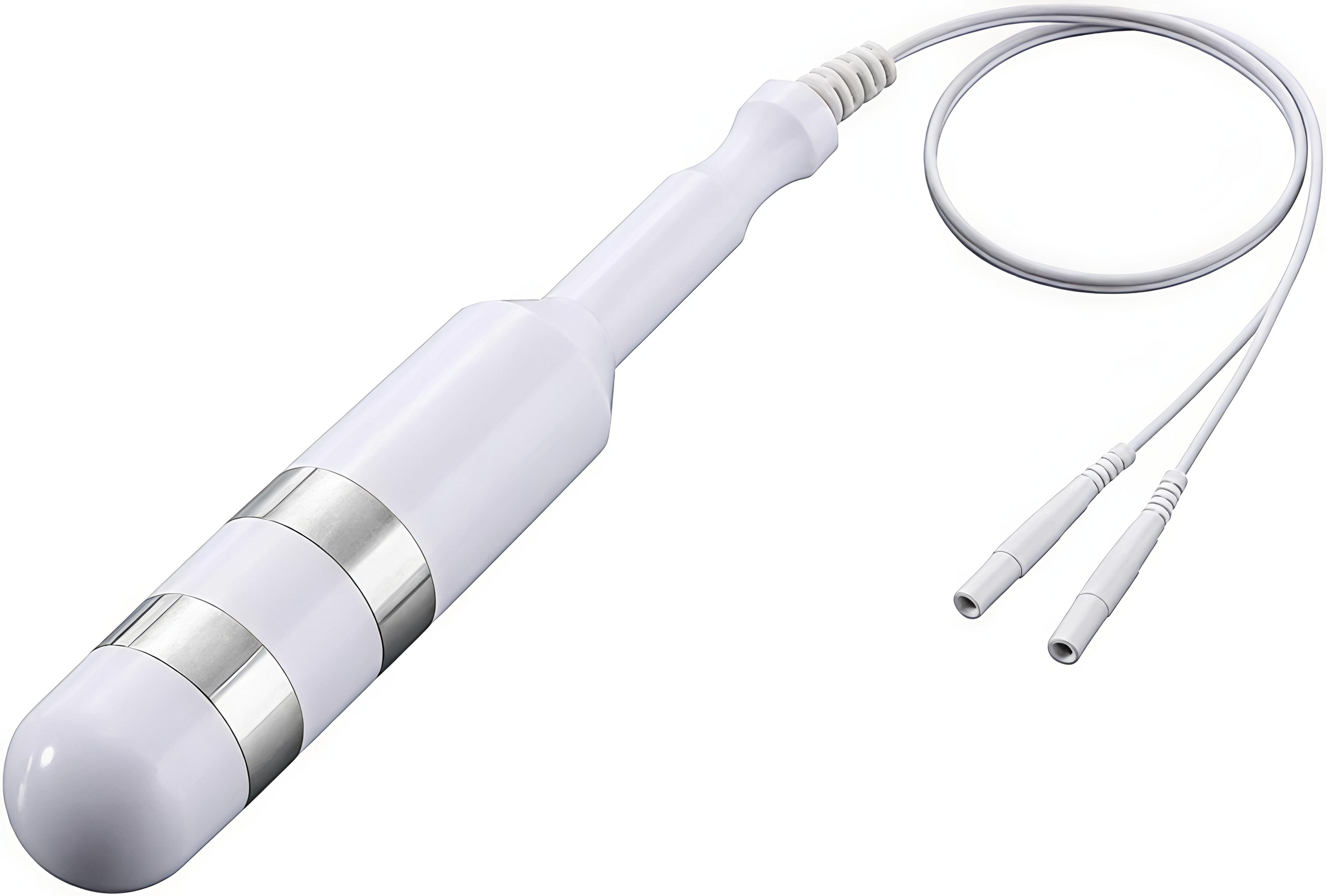

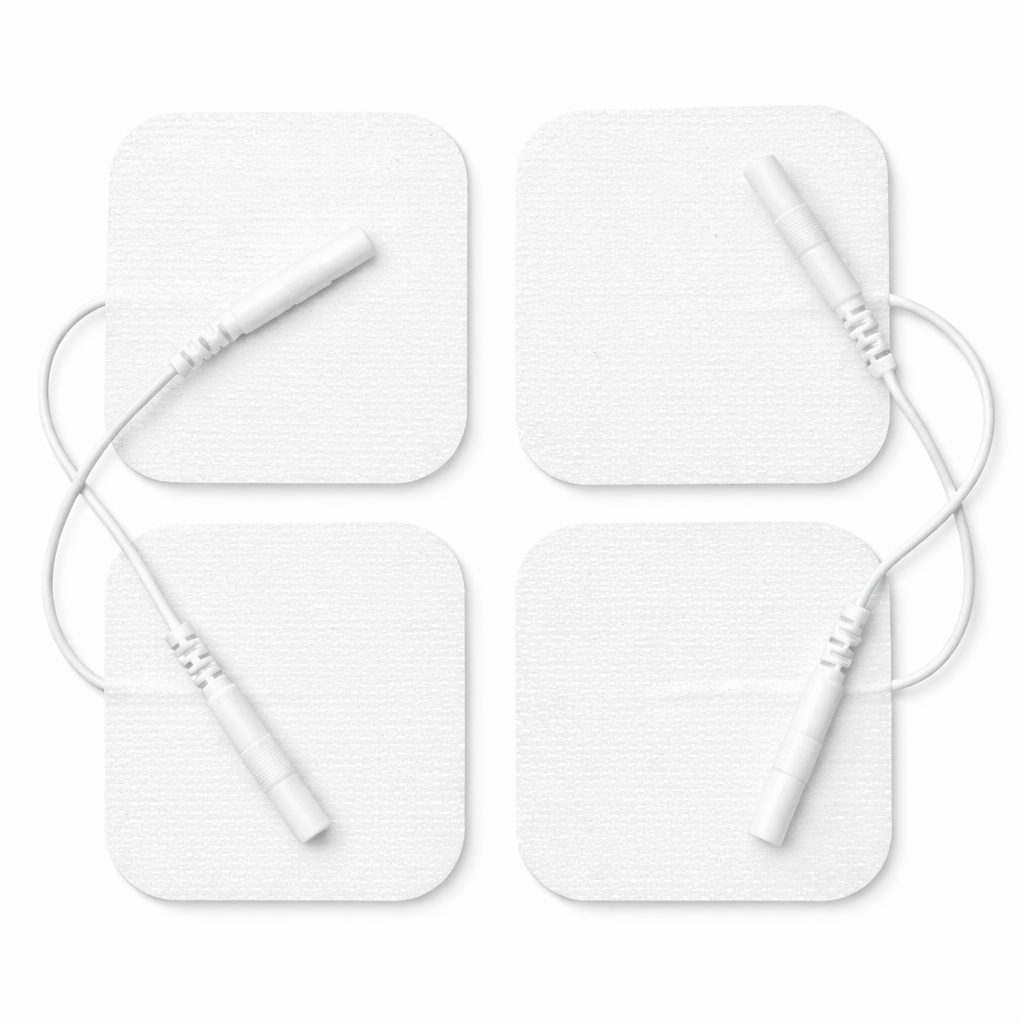

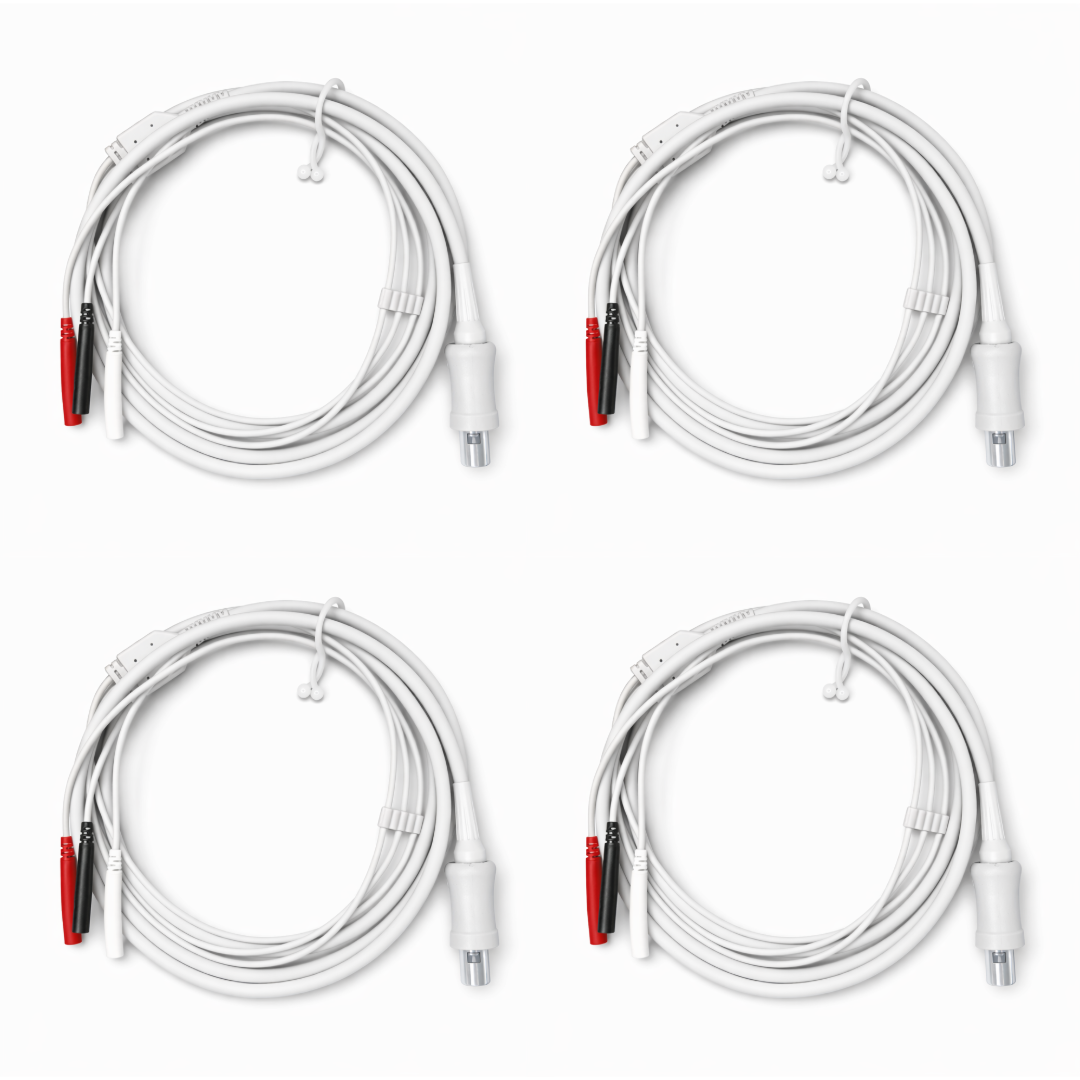

The digital interface allows the professional to select treatment modes and configure therapy parameters. The KM-560 documentation identifies 560-2 and 560-4 configurations, with multiple-channel treatment capability and different electrode lead configurations. This makes the system suitable for professional rehabilitation environments requiring flexible muscle training and stimulation options. Pasted markdown
Key Features
- EMG Biofeedback Therapy
- NMES Therapy Function
- FES-Compatible Functional Stimulation Applications
- Real-Time EMG Waveform Display
- 7-inch True-Color TFT LCD
- Touchscreen Operation
- Multiple-Channel Treatment Technology
- Adjustable Stimulation Intensity
- Adjustable EMG Feedback Threshold
- ETS / EMG-Triggered Stimulation
- Treatment Record Storage & Recall
- Multiple Preset Stimulation Programs
- Custom Stimulation Parameters
- Continuous & Non-Continuous Modes
- Professional Rehabilitation Configuration
- Rechargeable Battery Operation Pasted markdown
Applications
- Physiotherapy
- Neurological Rehabilitation
- Muscle Activation Training
- Muscle Re-Education
- EMG Biofeedback Training
- NMES Therapy
- Functional Electrical Stimulation Applications
- Sports Rehabilitation
- Physical Therapy
- Rehabilitation Center Applications
- Clinical Muscle Training
- Post-Recovery Rehabilitation
Benefits
Real-Time Muscle Feedback
The EMG function allows professionals to observe muscle activity through displayed waveforms and feedback information.
Combined Biofeedback & Stimulation
The system combines myoelectric biofeedback with electrical stimulation functions, providing multiple therapy options within one platform. Pasted markdown
Adjustable Therapy Parameters
Professionals can configure frequency, pulse width, treatment time, waveform and operating mode according to the selected treatment program.
Multi-Channel Treatment
The KM-560 documentation describes multiple-channel treatment technology, allowing simultaneous management of different treatment channels according to the model. Pasted markdown
Treatment Record Management
Treatment records can be stored and recalled through the system, supporting organized clinical workflows. Pasted markdown
Technical Specifications
| Specification | KM-560 Details |
|---|---|
| Product Type | Biofeedback Nerve & Muscle Stimulator |
| Models | 560-2 / 560-4 |
| Display | 7-inch True-Color TFT LCD |
| Operation | Touchscreen |
| Channels | 2/4 channel configuration |
| Electrical Stimulation Current | Up to 50 mA RMS |
| Pulse Width | 50–450 μs |
| Pulse Frequency | 1–120 Hz |
| Treatment Time | 1–60 minutes |
| EMG Feedback | Real-Time Myoelectric Feedback |
| EMG Threshold | 50–2000 μV |
| EMG Working Time | 2–99 seconds |
| EMG Rest Time | 2–99 seconds |
| Stimulation Rise Time | 0.1–9.9 seconds |
| Stimulation Fall Time | 0.1–9.9 seconds |
| Stimulation Time | 2–99 seconds |
| Total ETS Time | 1–60 minutes |
| Waveform | Symmetrical / Asymmetrical / Interaction |
| Operating Mode | Continuous / Non-Continuous |
| Power Supply | Internal DC 14.8 V, 2800 mAh rechargeable battery |
| Charging Adapter | DC 19 V / 3 A |
| Device Dimensions | 23 × 12 × 20 cm |
| Weight | 2.4 kg including battery |
| Product Life | 5 years |
| Working Temperature | 5°C–40°C |
| Relative Humidity | ≤80% |
| Atmospheric Pressure | 70–106 kPa |
Why Choose This EMG Biofeedback Therapy System?
Biotronix Solution Forever EMG Biofeedback Therapy Equipment with FES and NMES combines muscle activity feedback, digital monitoring and electrical stimulation functions in a compact professional rehabilitation system. The KM-560 documentation specifies a 7-inch color touchscreen, 2/4-channel configurations, EMG feedback, adjustable stimulation parameters, ETS functionality and treatment-record storage. Pasted markdown
With adjustable stimulation frequency from 1 to 120 Hz, pulse width from 50 to 450 μs, and treatment duration from 1 to 60 minutes, the system provides flexibility for different professional rehabilitation protocols.
