Biotronix Shockwave Therapy Device for Reducing Inflammation and Promoting Healing with 1 Year Warranty

Biotronix Shockwave Therapy Device for Reducing Inflammation and Promoting Healing with 1 Year Warranty

Features :-

1. The human engineering design provides setting and operates conveniently.

2. Import power source, to ensure instant shock output effect.

3. Surge pressure and frequency selection, conform to treatment demand.

4. The ultra-silence air compressor is built-in accessories collection box.

5. Provides a various professional probe.

6. High effectiveness, fast relieve pain.

7. No need for surgery, the cure rate of 80~90%

8. Noninvasive, no anesthetic, convenient and fast.

9. Widely applied to different soft tissue treatments.

10 .This machine could be used to treat joints pain and ED treatment.

Parameter Product Name: Shock wave machine

* Color: Silver + blue

* Voltage:AC110V-AC220V

* Frequency:50HZ/60HZ

* Power:90W

* MAX Current:2A

* MAX Output frequency numbers:16

* Output level numbers:12

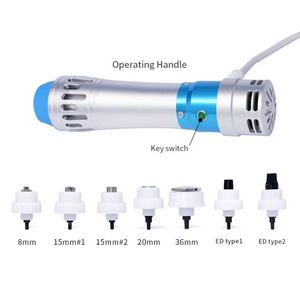

* Transmitters numbers:7pcs

Extracorporeal body massager shock wave therapy machine pain relief massager Pain Relief Massager Relaxation Pain Relief Application: 1. Shoulder pain, calcific tendonitis 2. Radial or ulnar humeral epicondylitis 3. Trochanteric tendonitis 4. Waist or stern pain 5. Patellar tendonitis 6. Tibial stress syndrome 7. Achillodynia 8. Plantar fascitis 9. ED Treatment.

WHAT IS SHOCKWAVE THERAPY?

Shockwave therapy is a non-invasive treatment used to promote healing and alleviate pain in various musculoskeletal conditions. It involves the application of high-energy sound waves (acoustic waves) to targeted areas of the body, typically to treat soft tissue injuries, joint pain, tendonitis, and muscle or ligament damage. The shockwaves stimulate circulation, reduce inflammation, promote tissue regeneration, and increase collagen production, helping to accelerate the healing process. Shockwave therapy is often used for conditions like plantar fasciitis, tendinitis, calcific shoulder tendinopathy, and chronic pain in areas such as the back, hips, knees, and elbows.

BENEFITS OF SHOCKWAVE THERAPY.

Shock wave therapy has many biological benefits including :-

* Pain Relief: Helps alleviate chronic pain by stimulating natural pain-relieving mechanisms in the body.

* Accelerates Healing: Promotes tissue regeneration and accelerates the healing process for soft tissue injuries, tendons, and muscles.

* Non-Invasive: Provides a non-surgical treatment option for musculoskeletal pain, avoiding the need for invasive procedures or long recovery times.

* Improves Blood Circulation: Increases blood flow to the affected area, which helps deliver more oxygen and nutrients to tissues, speeding up recovery.

* Reduces Inflammation: Helps decrease swelling and inflammation in affected areas, contributing to quicker recovery from injuries.

* Treats Various Conditions: Effective for treating conditions like plantar fasciitis, tendonitis, calcific shoulder tendinopathy, and sports injuries.

* Enhances Mobility: Improves joint mobility and range of motion, particularly in patients with stiff or painful joints.

* Stimulates Collagen Production: Encourages collagen synthesis, helping with tissue repair, especially for tendons, muscles, and ligaments.

* No Need for Medication: Reduces the reliance on painkillers and anti-inflammatory drugs, providing a natural alternative for pain management.

* Quick Recovery: Shortens rehabilitation times by improving healing and reducing muscle soreness after intense physical activity.

PRINCIPLES OF SHOCKWAVE THERAPY.

• Electrohydraulic Generation Principle

  ·         Piezoelectric Generation Principle

  ·         Electromagnetic Generation Principle

  ·         Radial or Ballistic Generation Principle



  Four generating principles in the field of shock waves are Electrohydraulic, Electromagnetic sources, and Piezoelectric sources, and the Radial or Ballistic Generation Principles. The shock wave emitted by most of the equipments have a focal zone that is several centimeters ahead of the generator. The therapeutic effects occur where most sonic waves are gathered in the focal zone, so this is often the action spot. The shock wave is transmitted through the coupling medium into the tissue creating a focal zone. It is necessary to make sure that the target area is in the focal zone during the shock wave treatment.

WHAT ARE THE TREATMENT PARAMETERS?

Parameters include acoustic energy, energy flux density (EFD),  pressure distribution and the total energy at the second focal point. The energy flux density (EFD) of the focused shock wave used for the treatment of muscular trigger point is between 0.05 and 0.25 mJ/mm2. To avoid tissue damage the shock wave frequency applied to the trigger point should not exceed 4 Hz.  Based on the thickness and depth of the muscle, the energy flux density (mJ/mm2) is selected. The energy flux density should be selected in such a way that the pain induced by the shock waves is tolerable for the patient. For the radial shock waves, the same method applies.  Extreme caution should be taken while using small surface shock transmitters with a small surface as they generate high peak pressures, to avoid hematomas. The shock wave frequency is 10 to 15 Hz, 15 Hz frequency generally causes less pain. When using a combination of focused and radial shock waves in trigger point therapy, the trigger points are first treated by applying 200 to 400 focused shock waves. It is then followed by the radial shock wave transmitter, applying 3000 to 4000 radial shock waves.

Frequency: It is ideal to give one session per week for most patients. These intervals give muscles time to recover from the irritation, which the patient might feel for up to three days.

HOW DOES SHOCK THERAPY WORK?

Shockwave therapy has a positive and negative phase. The positive phase produces direct mechanical forces, whereas the negative phase generates cavitations and gas bubbles that subsequently implode at high speeds, generating a second wave of shockwaves. It uses high peak pressure followed by low amplitude, short duration, and short rise time. They have a single pulse, with high-pressure amplitude (0-120 MPa) and a wide frequency range (0-20 MHz). Whereas ultrasound waves have approximately 1000 times lesser peak pressure than that of a shockwave. Shockwaves are low-frequency pressure disturbances that travel rapidly in three-dimensional space, associated with a sudden rise from ambient pressure to their maximum pressure. Significant tissue effects include cavitations, which are consequent to the negative phase of the wave propagation.

The whole process does not produce any thermal effect, it promotes revascularization, stimulating proliferation and osteoprogenitor differentiation, increases leukocyte infiltration, amplifies growth factor and protein synthesis to stimulate collagen synthesis and tissue remodeling.

APPLICATION

The patient is assessed by the physiotherapist during his first visit to confirm that he is an appropriate candidate for shockwave therapy. The treatment is started by applying gel on the treatment area. The applicator or therapy head is directly placed on the area. A medium of gel is required for the transmission of the waves through the patient's skin. The parameters are set and the intensity is applied according to the comfort of the patient (there is no standardized protocol for the treatment of musculoskeletal conditions). It can be used in conjunction with treatment-specific exercises, activity modification. Depending on the results, the patient is advised to take the shockwave therapy once a week for 3-6 weeks.

CONDITIONS TREATED BY SHOCKWAVE THERAPY.

Shockwave therapy is most commonly used in the treatment of common musculoskeletal conditions. These include:

• Acute and chronic muscular pain in cervical and lumbar spine regions.
• Chronic tendinopathy
• Calcific tendinosis of rotator cuff muscles
• Frozen shoulder
• Dorsalgia
• Tennis elbow
• Golfers elbow
• Carpal tunnel syndrome
• Sciatic pain
• Tensor fascia late syndrome
• Iliotibial band friction syndrome
• Greater trochanteric pain syndrome
• Avascular necrosis of the femoral head
• Medial tibial stress syndrome
• Osteoarthritis of knee
• Patellar tendonitis
• Jumper's knee
• Bursitis
• Metarsalgia
• Tibialis anterior syndrome
• Achilles tendonitis
• Plantar fasciitis
• Heel spurs
• Fracture
• Exostosis of small joints
• Repetitive strain and overuse injuries.

SIDE EFFECTS OF SHOCKWAVE THERAPY.

The patient experiences temporary tenderness, soreness, or swelling for few days after the treatment shockwaves stimulate an inflammatory response. The patient return to the regular activities immediately after the completion of the treatment.

CONTRAINDICATIONS FOR SHOCKWAVE THERAPY.

• Pacemakers
• Implanted devices
• Joint replacements
• Pregnancy
• Tumor
• Infection
• Open wounds
• Circulation or nerve disorder.
